GeyserCG-3D

The project aims to realize the geyser’s natural phenomenon caused by a water explosion through WebGL and Three.js technologies.

The idea was to simulate the physics of water and steam particles:

• description of the motion of water particles following a parabolic trajectory;
• description of the randomic motion of steam particles in 3D space;
• creation of a pseudo-realistic scene.

The physics of the particles system is done thorough shaders programming with WebGL.

The project is developed by Alessandro Sestini and Francesco Lombardi

Shaders

There are two kinds of vertex shaders:

• one is for water particles;
• one is for steam particles;

The vertex_water is responsible of moving the water particle, following:

<script type="x-shader/x-vertex" id="vertex_water_particles">

  attribute vec3 movements;
  uniform float t;
  uniform float pointDim;
  uniform float limitXZ;

  void main()
  {

    float theta = movements.y;
    float v0r = movements.x;
    float v0y = movements.z;

    float v0x = v0r*cos(theta);
    float v0z = v0r*sin(theta);

    vec3 p = position;

    p.x += v0x*t;
    p.y += -0.5*9.8*80.0*t*t+v0y*t;
    p.z += v0z*t;

    if(p.y < -1.0 || abs(p.x) > limitXZ || abs(p.z) > limitXZ){
      p.x = -0.1;
      p.y = -0.1;
      p.z = -0.1;
    }

    vec4 mvPosition = modelViewMatrix * vec4( p, 1.0 );
    gl_PointSize = pointDim * ( 300.0 / -mvPosition.z );
    gl_Position = projectionMatrix * mvPosition;
  }

</script>

Instead, the vertex_steammoves the steam particles:

<script type="x-shader/x-vertex" id="vertex_steam_particles">

  attribute vec3 movements;
  uniform float pointDim;
  uniform float t;
  uniform float limitXZ;

  void main()
  {

    float omega = movements.x;
    float v0r = movements.y;
    float v0y = movements.z;

    vec3 p = position;

    p.x += v0r*t*cos(omega);
    p.y += (v0y*t);
    p.z += v0r*t*sin(omega);

    if(abs(p.x) > limitXZ || abs(p.z) > limitXZ || p.y > 1200.0){
      p.x = -0.1;
      p.y = -0.1;
      p.z = -0.1;
    }

    vec4 mvPosition = modelViewMatrix * vec4( p, 1.0 );
    gl_PointSize = pointDim * ( 300.0 / -mvPosition.z );
    gl_Position = projectionMatrix * mvPosition;
  }

</script>

The fragment shader is shared between the two types of particles:

<script type="x-shader/x-fragment" id="fragment_particles">

  uniform sampler2D texture_sampler;
  uniform float opacity;


  void main()
  {

    if(opacity == 0.0){
      discard;
    } else {
      gl_FragColor = texture2D(texture_sampler, gl_PointCoord);
      if(gl_FragColor.a < 0.5){
        discard;
      }
      gl_FragColor.a = opacity;
    }

  }

</script>

All the shaders are defined inside the index.htmlfile.

Scene

The whole scene is set-up using Three.js; an interactable example is reachable here.

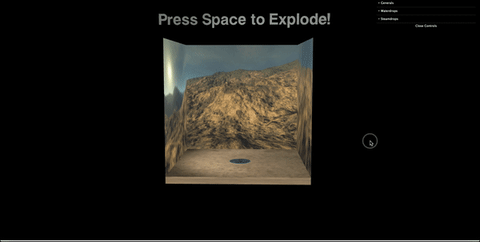

Some controls have been implemented in order to let the users be able to customize their experience; an example is shown here:

Report

A copy of the presentation can be found here.

License

Licensed under the term of MIT License.
